Product Advantage
Material Structure
|
Filter material |
High performance polypropylene fiber, defatted cotton thread, glass fiber |
|
Skeleton/Interface |
SUS304 stainless steel |
|
External diameter |
50mm、60mm |
|
Length |
50”--70’’ |
Job Characteristics
|
|
Initial pressure difference |
0.003-0.028MPa |
|
Operating pressure difference (80 ℃) |
Failure pressure difference |
0.1MPa (front) |
|
0.18MPa (resin) |
||
|
|
Initial pressure difference after backwashing |
0.014MPa |
Recommended Traffic
|
Filter element length |
50’’ |
60’’ |
70’’ |
|
Minimum flow rate |
12.5Lpm |
15.1 Lpm |
17.4 Lpm |
|
Maximum flow rate |
33.2 Lpm |
39.6 Lpm |
46 Lpm |
Ordering Information
|
70XR |
70 |
PP |
005 |
T1 |
S2 |
|
70XR |
length |
Texture of material |
Filtering accuracy |
Interface |
Screw |
|
|
50=50” |
PP=polypropylene |
001=1μm |
T1=M33X1.5 |
S1=M6 |
|
|
60=60” |
CT=degreased cotton thread |
005=5μm |
T2=M33X2 |
S2=M8 |
|
|
70=70” |
GF=Glass Fiber |
010=10μm |
T3=G1” |
S3=M10 |
|
|
|
|
|
T4=1 3/16-24 |
|
Industry Application
Condensed water powder resin covered filter
Pre iron removal filter for condensate polishing treatment
Engineered for Heavy-Duty Use

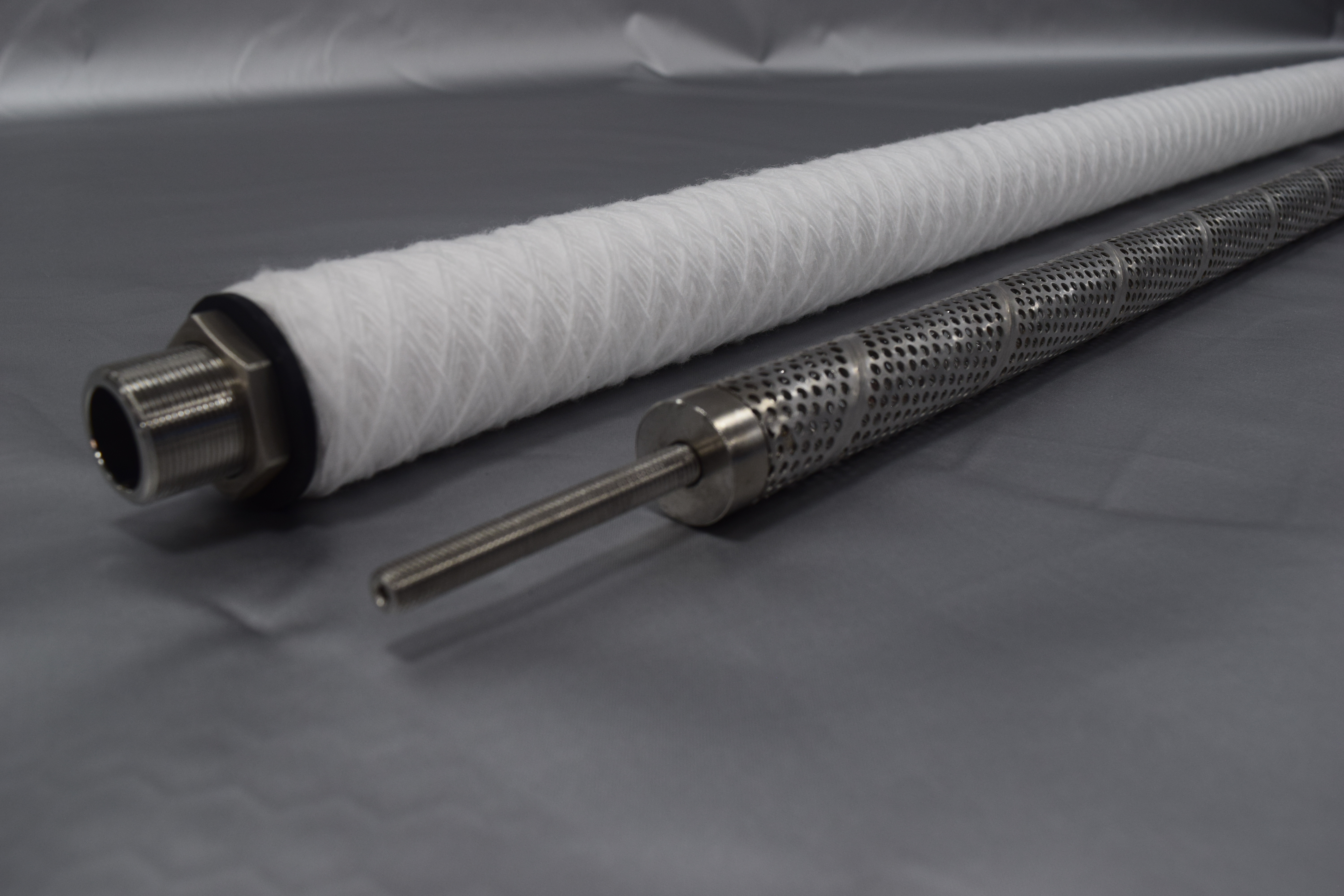

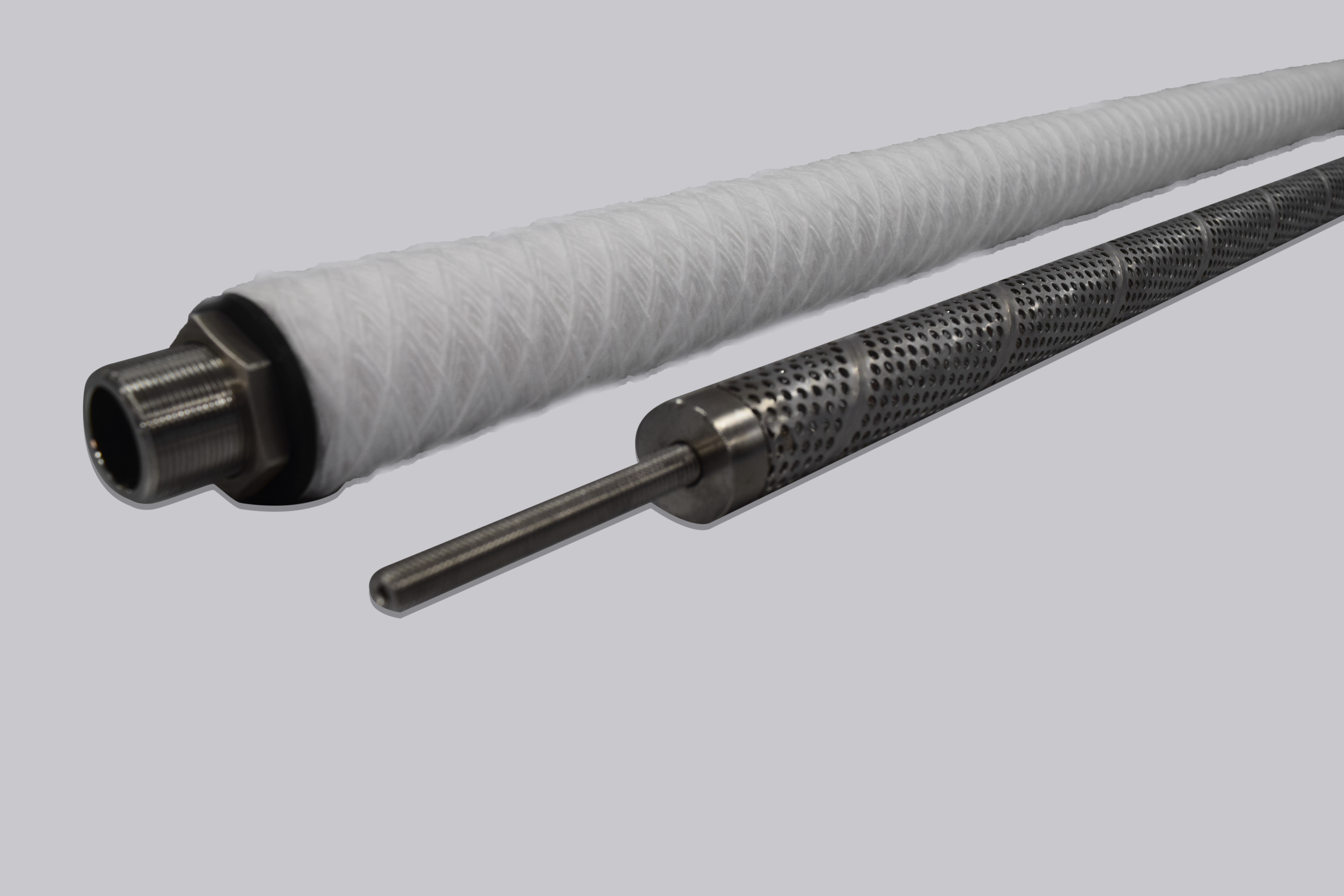

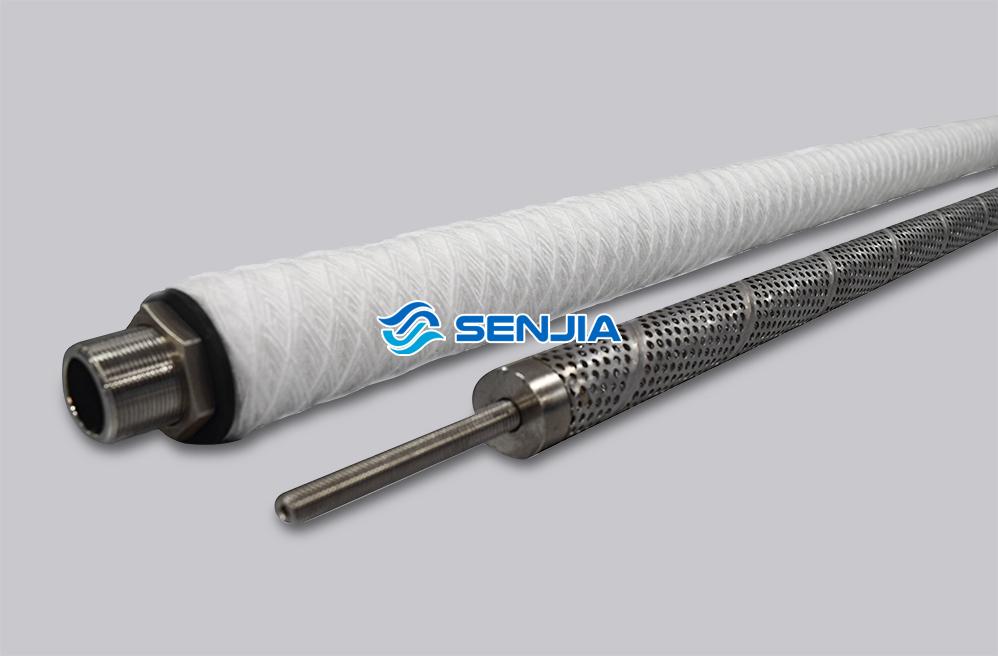

The 70XR Winding Filter Element is a premium filtration solution designed to meet the rigorous demands of industrial applications. As a leading product from a renowned cartridge filter manufacturer, this filter element is crafted with a sophisticated spiral wound design, primarily utilized in powder resin filters and pre-filters. Its construction involves multiple winding of polypropylene threads, creating a maze-like filter layer that maximizes the filter’s ability to capture impurities. This intricate design ensures that the filter provides deep filtration and superior performance, making it a preferred choice among filter cartridge manufacturers and air filters suppliers. The 70XR Winding Filter Element is not just a product; it's a testament to advanced filtration technology, offering unmatched efficiency and reliability.
Seamless System Integration
Built with a stainless steel high-strength skeleton, the 70XR Winding Filter Element offers unparalleled stability and durability. This robust construction is a hallmark of a top-tier stainless steel filter cartridge manufacturer, ensuring that the filter can withstand high-pressure environments and maintain its structural integrity over time. The inclusion of high-performance fibers prevents fiber deformation or detachment, making it a reliable choice among cartridge filter suppliers and metal filter cartridge suppliers. Additionally, the pre-coated resin enhances the backwashing effect, significantly extending the filter's lifespan and reducing the need for frequent replacements. This seamless integration into existing systems makes it an ideal solution for filter element stores and cartridge filter factories looking to provide their clients with top-notch filtration solutions.
Built for Modern Industry
Designed for diverse industrial applications, the 70XR Winding Filter Element is ideal for use in power plants where condensate water requires meticulous treatment. Its ability to adsorb certain substances in water and maintain low water flow resistance makes it a leading choice among water filter cartridge manufacturers and spun filter cartridge manufacturers. This filter element is a testament to innovation, providing efficient and reliable filtration solutions. Its versatility allows it to be employed in various sectors, including chemical processing and pharmaceutical manufacturing, where water purity is paramount. As a product from a reputable cartridge filter manufacturer, it meets the highest industry standards, ensuring that it is the perfect solution for all your filtration needs. Whether you're a cartridge filter supplier or a metal filter cartridge factory, the 70XR Winding Filter Element is designed to enhance your operations with its superior performance and reliability.
Usage Scenarios
1. Power Plant Efficiency Enhancement
In power plants, the 70XR Winding Filter Element is a critical component for pre-filters in condensate water treatment systems. By utilizing its advanced spiral wound design, power plants can achieve superior filtration, ensuring that impurities are effectively captured. This not only enhances the operational efficiency of the plant but also prolongs the lifespan of the equipment. As a cartridge filter manufacturer, we provide solutions that help power plants maintain optimal performance and reduce maintenance costs.
2. Industrial Water Filtration Systems
Industries that require high-quality water filtration, such as manufacturing and processing plants, benefit significantly from the 70XR Winding Filter Element. Its ability to remove impurities ensures that machinery and processes are protected from corrosion and wear. This filter element is a preferred choice among filter cartridge suppliers due to its durability and efficiency, making it an essential component in industrial water filtration systems.
3. Chemical Processing Purity Assurance
In chemical processing facilities, maintaining the purity of water is crucial to prevent contamination and ensure product quality. The 70XR Winding Filter Element, with its adsorption capabilities, plays a vital role in these environments. As a stainless steel filter cartridge manufacturer, we ensure that our filters meet the stringent requirements of chemical plants, providing reliable filtration solutions that support safe and efficient operations.
4. Pharmaceutical Manufacturing Compliance
Pharmaceutical manufacturers rely on the 70XR Winding Filter Element to meet high standards of water purity. This filter is essential in ensuring that water used in production processes is free from contaminants, thereby supporting the production of safe and effective pharmaceuticals. Our expertise as a filter cartridge manufacturer ensures that our products are compliant with industry regulations, making them a trusted choice for pharmaceutical companies.
5. Food and Beverage Industry Hygiene Standards
The food and beverage industry demands stringent hygiene standards, and the 70XR Winding Filter Element helps meet these requirements by providing reliable water filtration. By removing contaminants, this filter ensures that products meet health and safety standards. As a cartridge filter supplier, we offer solutions that help food and beverage companies maintain product quality and safety, reinforcing their commitment to consumer health.
About Us
Henan Senjia Environmental Sci-Tech Co., Ltd. is a national high-tech enterprise specializing in the research, development, manufacturing, and application of advanced filtration solutions. With a commitment to innovation and quality, we offer a wide range of products designed to meet the diverse needs of industries such as power generation, chemical processing, pharmaceutical manufacturing, and food and beverage. Our 70XR Winding Filter Element exemplifies our dedication to providing premium filtration solutions, featuring a sophisticated spiral wound design that ensures deep filtration and superior performance. Built with a stainless steel high-strength skeleton and high-performance fibers, our filters are designed for durability and efficiency, capable of withstanding high-pressure environments. At Senjia Filter, we are driven by a vision to deliver reliable and efficient filtration solutions that enhance operational efficiency and ensure water purity across various sectors. Our state-of-the-art manufacturing facilities and a team of skilled professionals enable us to maintain the highest industry standards, ensuring that our customers receive products that are both innovative and dependable. Join us in our mission to provide clean and safe water solutions worldwide.
Contact Senjia Filter today to upgrade your industrial filtration with the 70XR Winding Filter Element. Let’s enhance your operations with superior filtration solutions!
