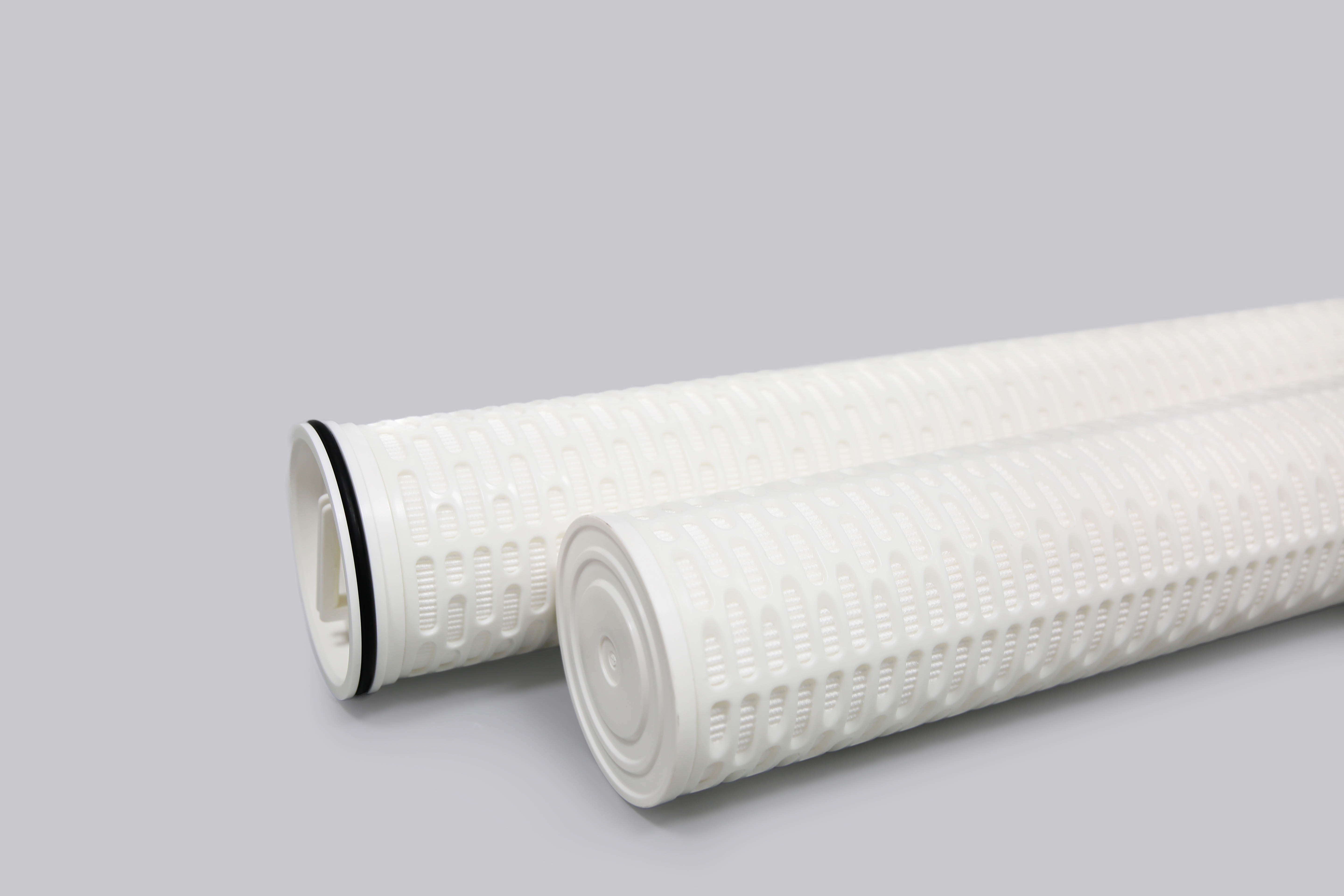

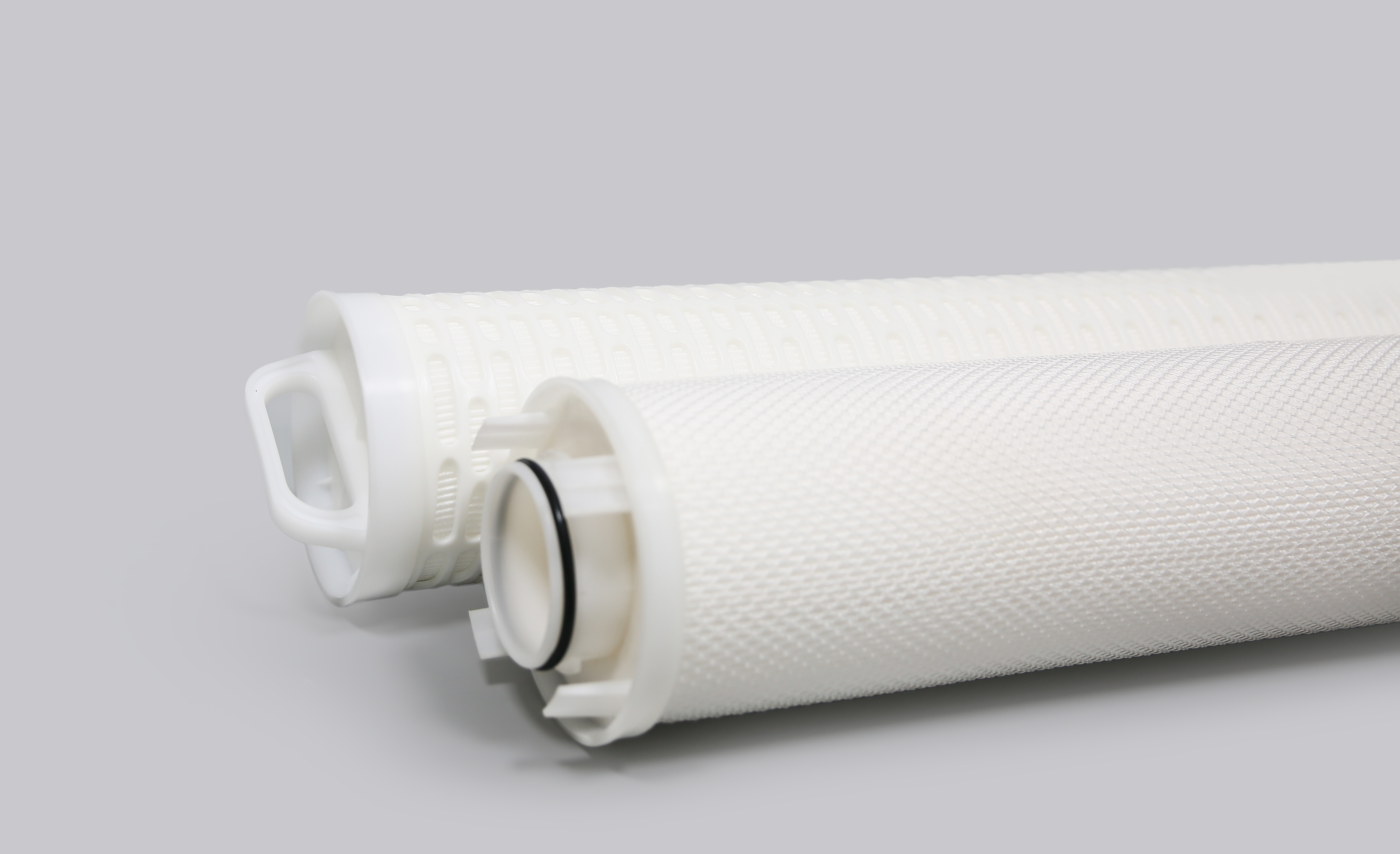

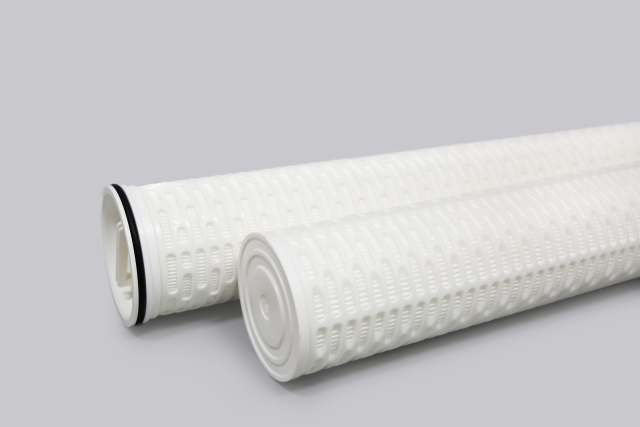

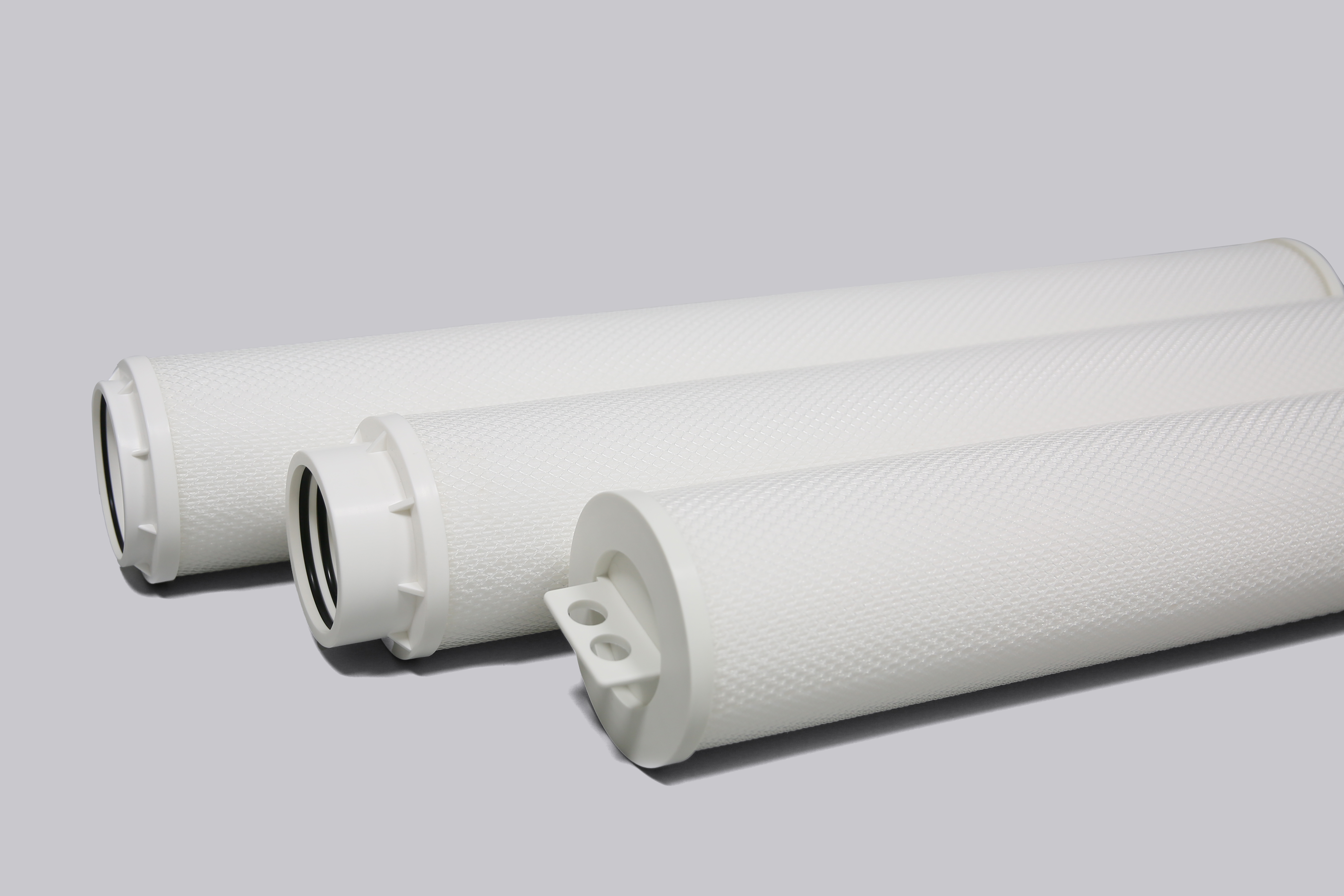

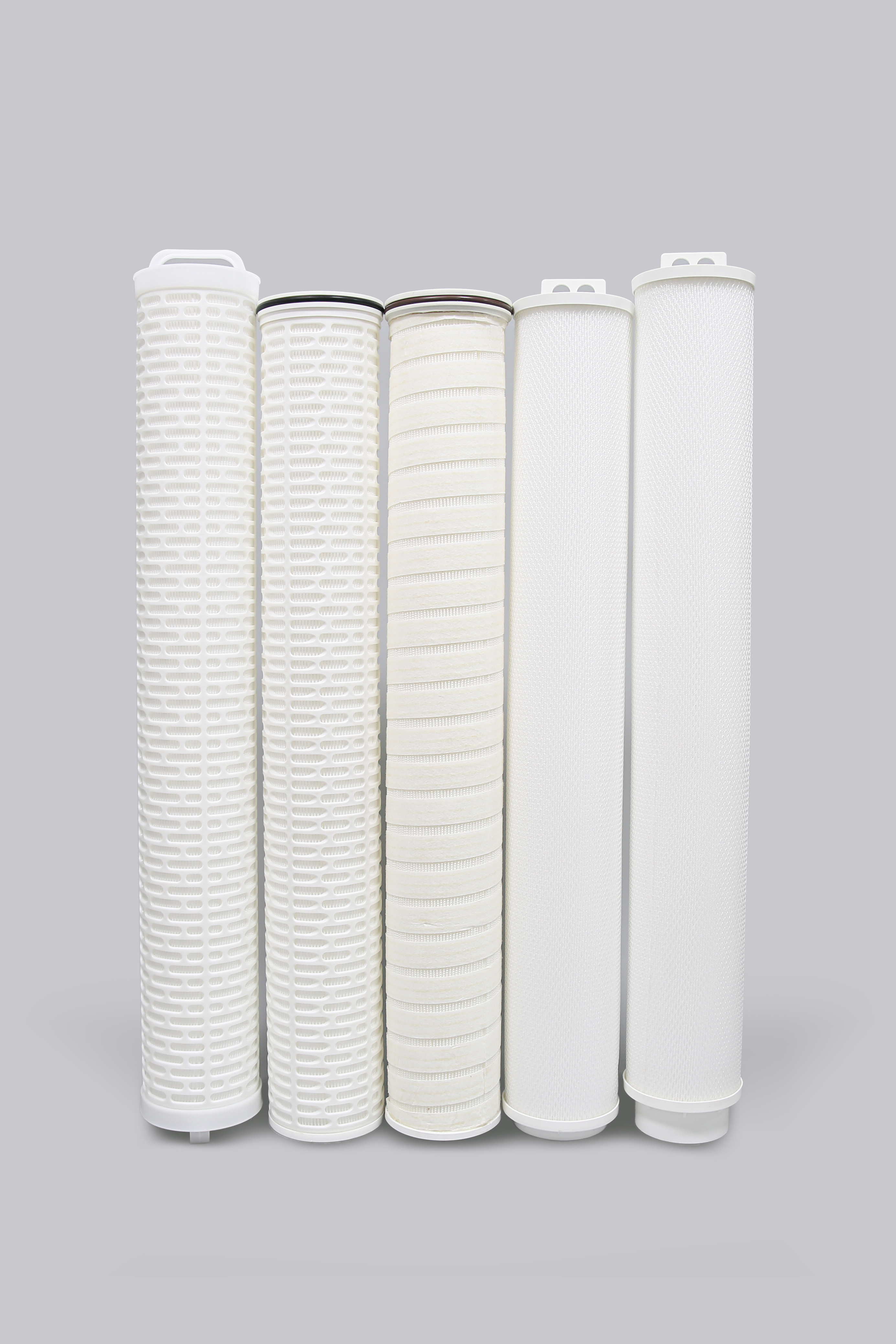

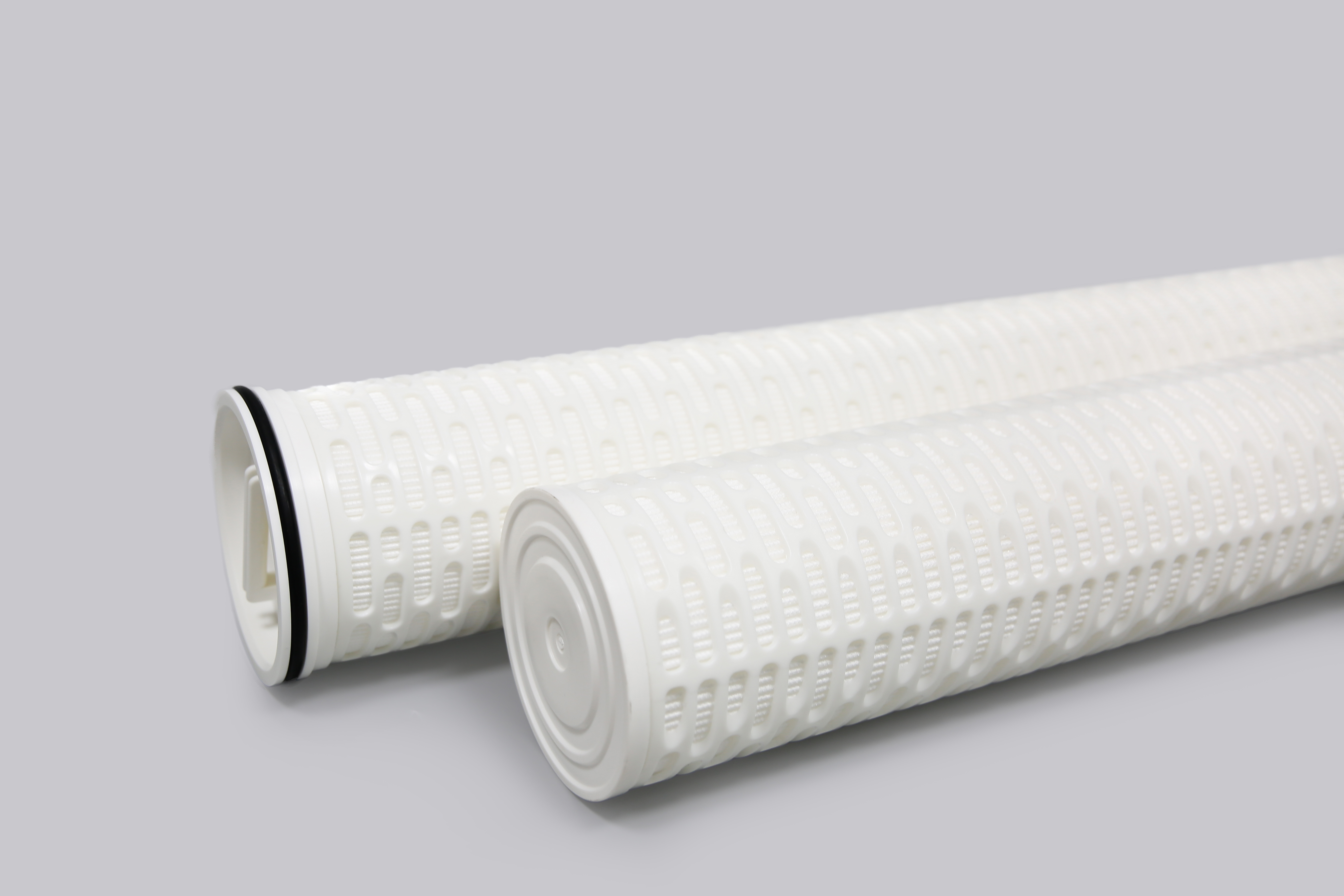

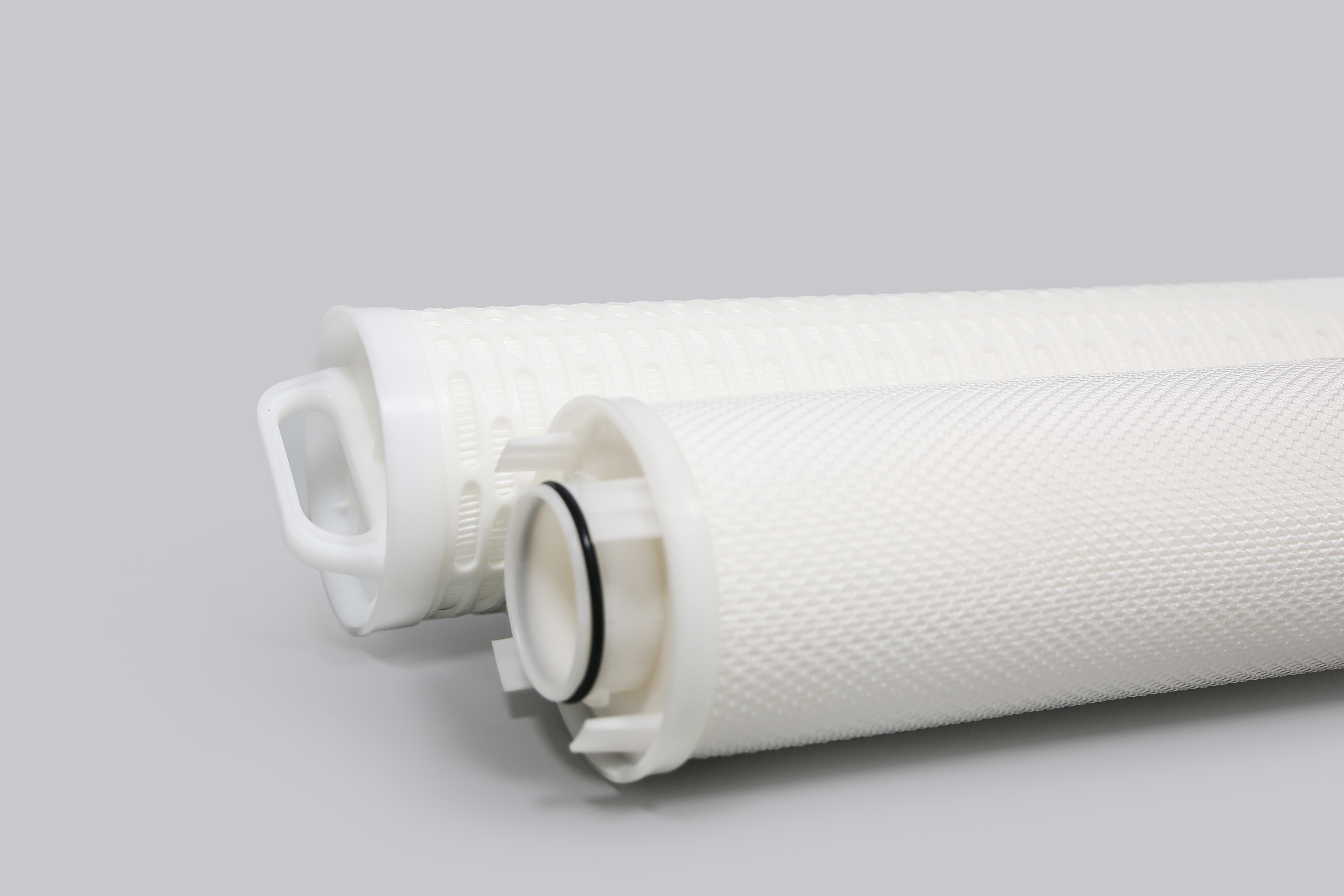

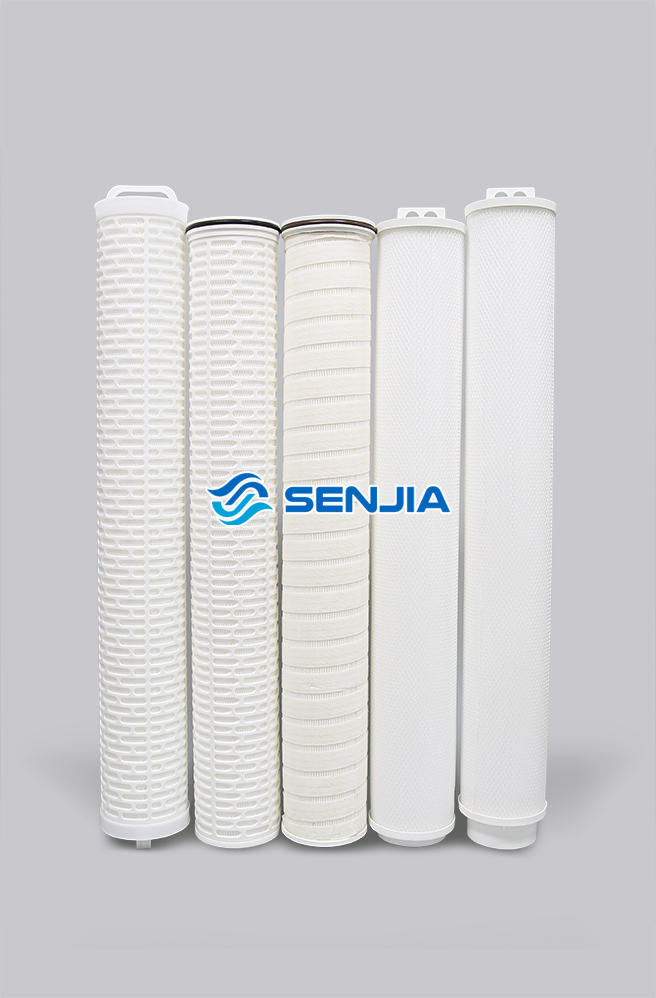

LF Series High Flow Folding Filter Cartridge

Name: LF Series High Flow Folding Filter Cartridge
Brand: Henan Senjia environmental Sci-Tech Co., Ltd.

The LF series high flow folding filter cartridge uses deep fine polypropylene fiber membrane as the filter material. The maximum filtration area of a single filter cartridge exceeds 8m², and the flow rate can reach 60m³/h. It can be divided into internal and external pressure flow directions, and the stepped filtration ensures that all pollutant particles are intercepted inside the filter cartridge, which can be widely used in different fields. Reduced the requirements for the size and number of filter cartridges during use, greatly saving equipment and labor costs, and making operation more convenient.

Get The Latest Quote

Description

Product Advantage

Composed of 5 or more layers of nanofiber membranes, it can achieve ultra-high filtration efficiency of over 99% while providing a larger space for pollutant absorption
High density folding achieves a perfect combination of large filtration area, high flow rate, long lifespan, and high pollutant holding capacity
Optimize the integrated PP skeleton for greater strength and stronger pressure resistance
Unique sealing ring provides better sealing performance
Fiberglass reinforced end caps enhance the overall strength of the filter element
From 0.5 μ m to 100 μ m, it can meet the requirements of different filtration levels for various filtration accuracies. There are three length specifications to choose from: 20 ", 40", and 60 "
Filter element replacement is convenient and fast, saving a lot of manpower and time

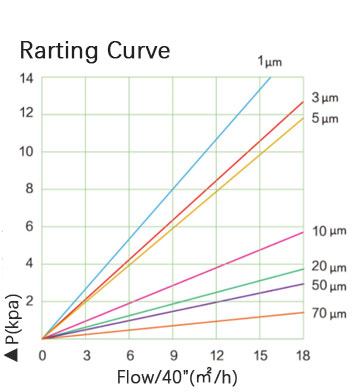

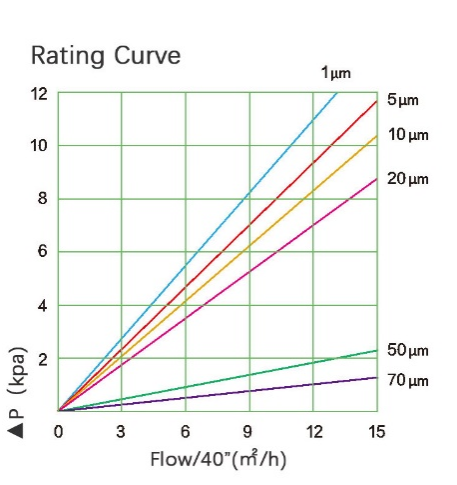

Design Parameters

Specification (diameter * length)	Design flow rate (m ³/h)	Maximum flow rate (m ³/h)	Filtration area (㎡)
6”*20”	15	40	3.3
6”*40”	30	80	6.5
6”*60”	45	110	8.5

Material Structure

Model	pp	GF
Filter material	Deep folding polypropylene	Resin synthetic fiberglass/polyester
Support/diversion layer	Polypropylene	Polyester
End cap	Glass fiber reinforced polypropylene	Glass fiber reinforced polypropylene
Outer protective cover	Polypropylene	Polyester

Ordering Information

LF	P	40	PP	0050	N	S
LF	Type	Length	Material Science	Accuracy	Seal Ring	Appearance	Joint form
	P	20=20”	PP	0010=1μm	E=Ethylene propylene diene monomer	S=skeleton	A
	K	40=40”	GF	0030=3μm	S=Silicone rubber	B=wrapping tape	B
	M	60=60”		0050=5μm	F=Fluororubber	W=Set net
				0100=10μm	N=Nitrile rubber
				0150=15μm
				0250=25μm
				0400=40μm
				0700=70μm

Industry Application
Seawater desalination project
Concentrated water treatment
Advanced treatment of papermaking wastewater
Advanced treatment of printing and dyeing wastewater
Reclaimed water plant
Other places with high filtration flow

Advanced Filtration Technology
Engineered with advanced filtration materials, this high flow water filter cartridge ensures superior removal of contaminants. It provides enhanced water quality, making it ideal for industries relying on cartridge filter water systems.

Wide Range of Applications
This high flow filter cartridge is suitable for diverse industries, including water treatment, oil and gas, and chemical processing. It stands out among cartridge filter suppliers for its versatility and high performance.

Eco-Friendly and Cost-Effective
The filter is designed to minimize waste and reduce operational costs, meeting the growing demand for sustainable solutions in the water filter cartridge industry.

Effortless Maintenance and Replacement
With an easy-to-replace design, this cartridge filter supplier solution reduces maintenance downtime, providing seamless integration into existing filtration systems.
