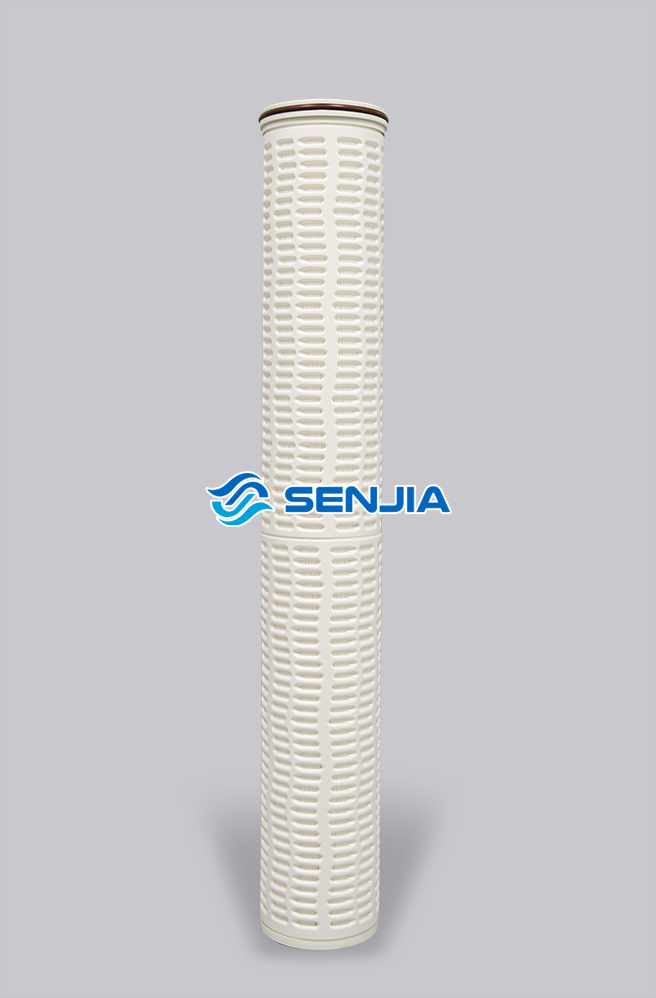

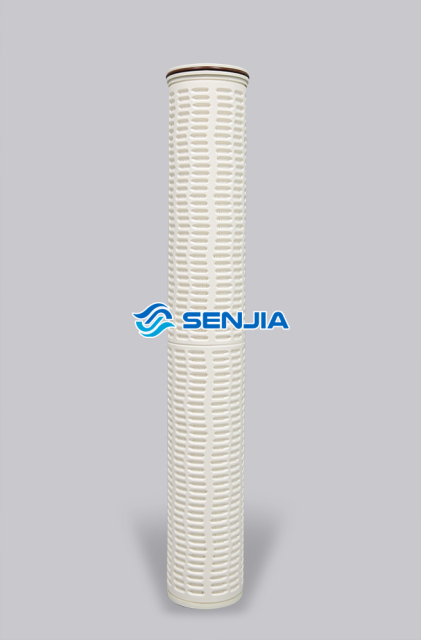

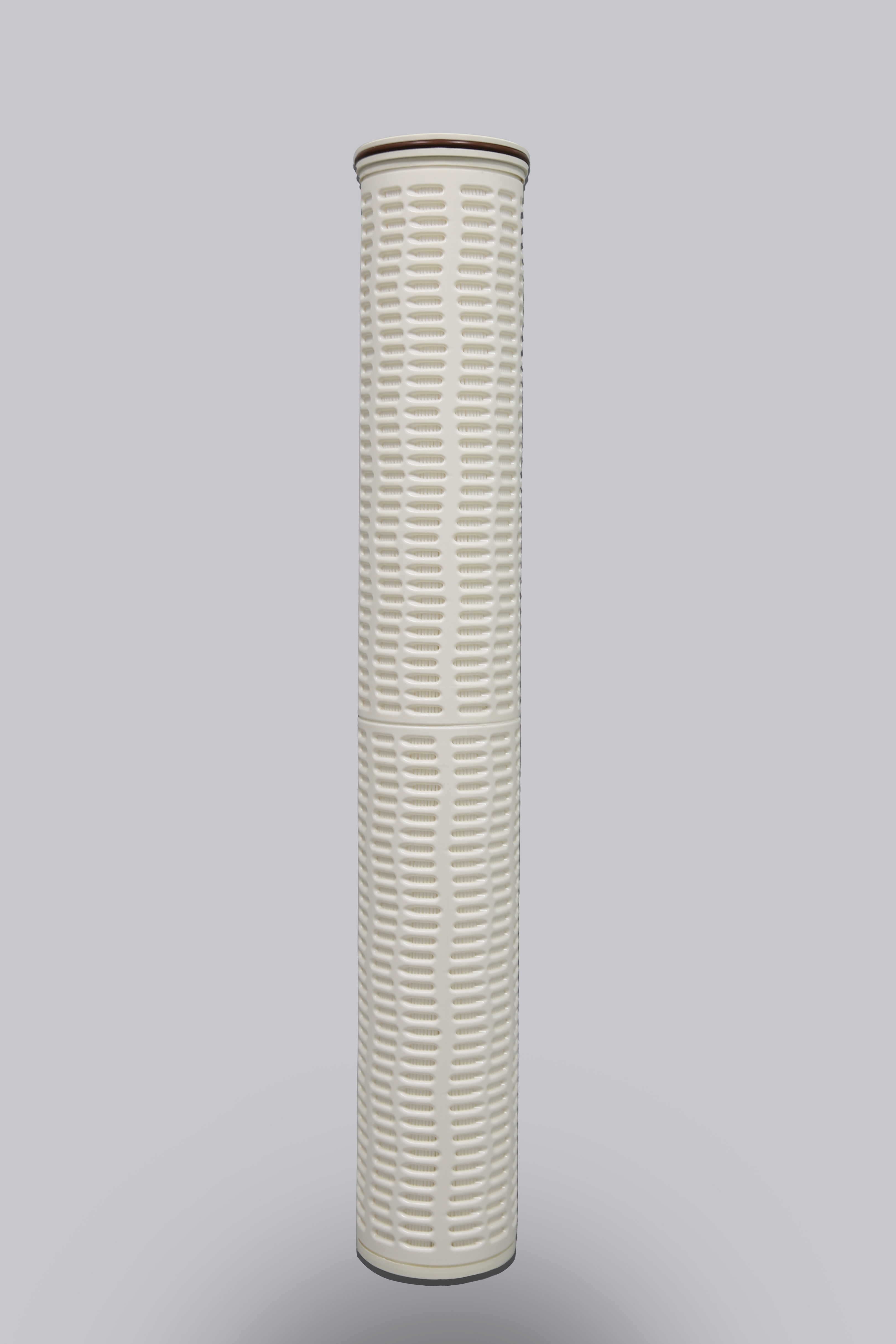

LFP series large flow folding filter adopts deep fine polypropylene fiber membrane as the filter material, the diameter of 6 "/152mm single filter has a maximum filtration area of more than 8m², and the flow rate can reach 60m³/h. The pp outer skeleton is single opening type, and the liquid flow direction is specially designed from inside to outside to ensure that all pollutant particles are intercepted inside the filter element. Can be widely used in different fields. It reduces the requirements for the size of the filter and the number of filter elements in the use process, greatly saves the equipment input cost and labor cost, and is more convenient to operate.
Product Advantage
Design Parameters
|
Specification (diameter * length) |
Design flow rate (m ³/h) |
Maximum flow rate (m ³/h) |
Filter area (㎡) |
|
6”*20” |
15 |
40 |
3.3 |
|
6”*40” |
30 |
80 |
6.5 |
|
6”*60” |
45 |
110 |
8.5 |
Material Structure
|
Model |
pp |
GF |
|
Filter material |
Deep folding polypropylene |
Resin synthetic fiberglass/polyester |
|
Support/diversion layer |
polypropylene |
polyester |
|
End cap |
Glass fiber reinforced polypropylene |
Glass fiber reinforced polypropylene |
|
Outer protective cover |
polypropylene |
polyester |
Ordering Information
|
LFP |
40 |
PP |
0050 |
N |
S |
|
LFP |
Length |
Material Science |
Accuracy |
Seal ring |
Appearance |
|
20=20” |
PP |
0010=1μm |
E=Ethylene propylene diene monomer |
S=skeleton |
|
|
40=40” |
GF |
0030=3μm |
S=Silicone rubber |
B=wrapping tape |
|
|
60=60” |
|
0050=5μm |
F=Fluororubber |
|
|
|
|
|
0100=10μm |
N=Nitrile rubber |
|
|
|
|
|
0150=15μm |
|
|
|
|
|
|
0250=25μm |
|
|
|
|
|
|
0400=40μm |
|
|
|
|
|
|
0700=70μm |
|
Industry Application
Seawater desalination project
Condensate treatment
Advanced treatment of papermaking wastewater
Advanced treatment of printing and dyeing wastewater
Reclaimed water plant
Other places with large filtering traffic
Advanced Filtration TechnologyThe Senjia LFP Full Polyester High Flow Folding Filter Cartridge exemplifies cutting-edge innovation in the filter cartridge manufacturer industry. Utilizing a deep fine polypropylene fiber membrane, it boasts a filtration area exceeding 8m². This expansive surface area supports a high flow rate of up to 60m³/h, making it highly efficient for industrial filtration needs. The cartridge's internal flow design ensures that all particles are effectively trapped within the filter, maximizing filtration performance and protecting downstream equipment. This level of precision and efficiency is a hallmark of products available at the filter element store.
Durable and Cost-Effective DesignThis filter element store product features a robust polypropylene (pp) outer skeleton optimized for enhanced strength and pressure resistance, ensuring durability under demanding conditions. Its single-opening design simplifies installation and maintenance by reducing the number of filter elements required. This design innovation significantly lowers equipment costs and labor expenses, offering a cost-effective alternative to traditional stainless steel filter cartridge options. The LFP cartridge's long service life and reliable performance make it an excellent investment for customers seeking value without compromising quality.
Versatile ApplicationsMore than just another ss sintered filter cartridge, the LFP cartridge serves a broad range of industries with its versatile functionality. It is ideal for critical applications including seawater desalination, advanced wastewater treatment, and reclaimed water processing. Its capacity to handle large fluid volumes efficiently makes it indispensable in high-demand industrial environments. Whether for municipal water treatment or industrial process filtration, this cartridge ensures smooth and efficient operations. The product’s adaptability and reliability are key reasons it is a preferred choice in the filter cartridge manufacturer sector.
Usage Scenarios
1.Seawater Desalination Projects: The LFP cartridge excels at removing impurities from seawater, delivering clean and safe water for municipal and industrial use. Its high flow capacity and filtration efficiency are critical for the demanding conditions of desalination plants.
2.Wastewater Treatment: Ideal for advanced treatment processes in industries such as papermaking and dyeing, the cartridge ensures compliance with environmental standards while maintaining operational efficiency. Its robust design handles challenging wastewater streams with ease.
3.Reclaimed Water Plants: Supporting sustainable water management, the LFP cartridge efficiently processes reclaimed water, contributing to conservation efforts and reducing environmental impact. Its reliability underpins the success of these eco-friendly initiatives.
4.Industrial Fluid Filtration: In high-traffic industrial environments, the cartridge manages large volumes of fluids, ensuring consistent filtration performance. This capability is vital for protecting sensitive equipment and maintaining product quality.
5.General Water Treatment: The cartridge’s adaptability makes it suitable for a broad spectrum of water treatment applications, from residential systems to large-scale industrial operations, ensuring a clean and safe water supply across sectors.
Experience the superior performance and reliability of the Senjia LFP Full Polyester High Flow Folding Filter Cartridge. Contact us now for a quote and elevate your filtration system to new heights.
