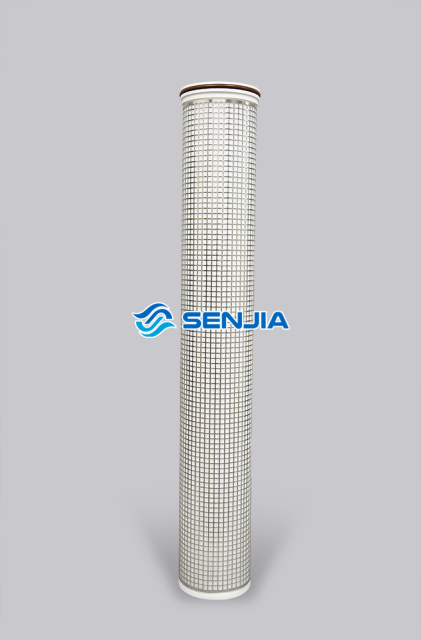

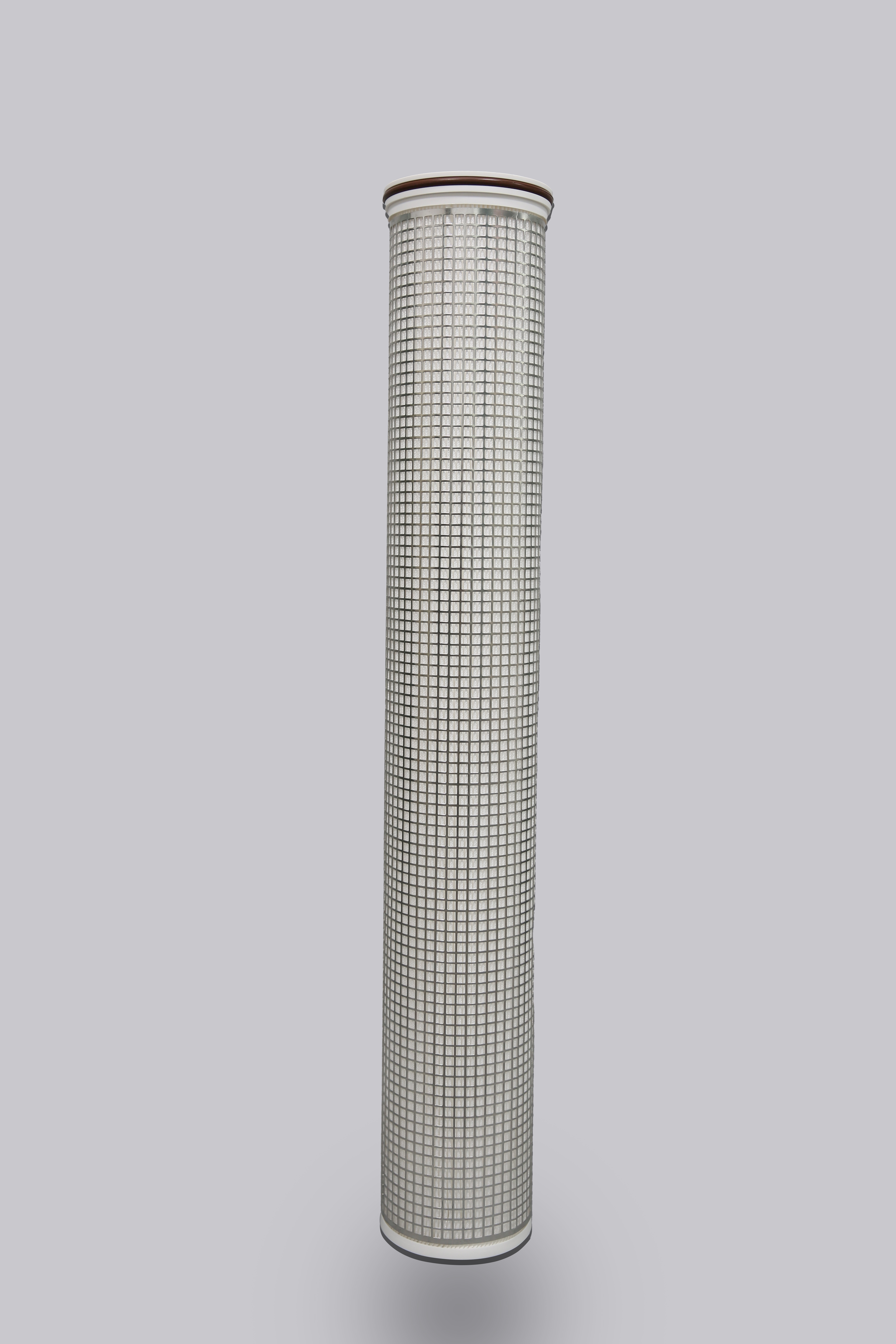

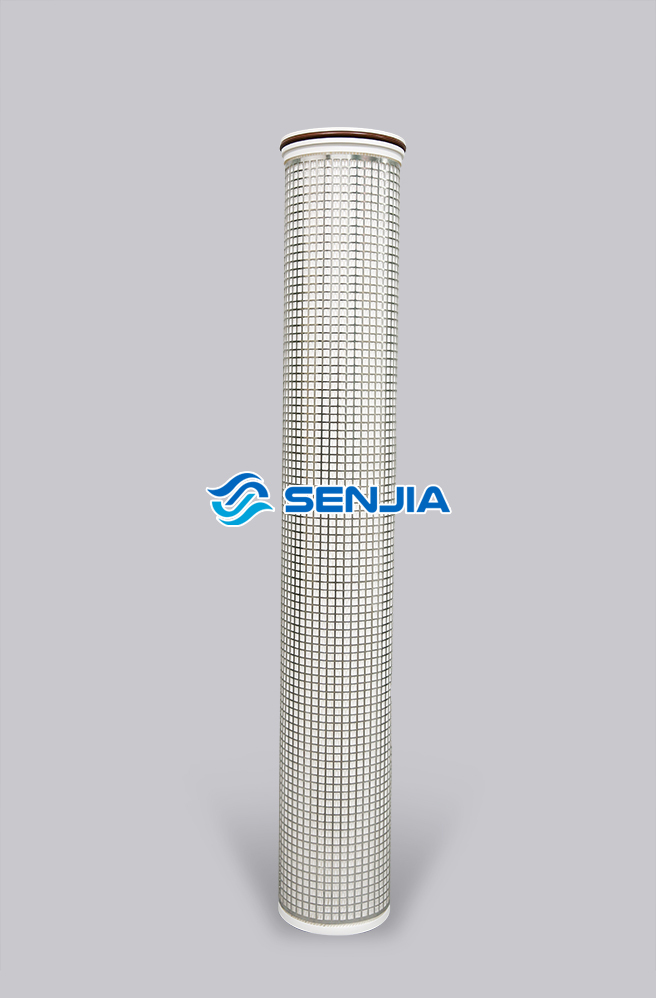

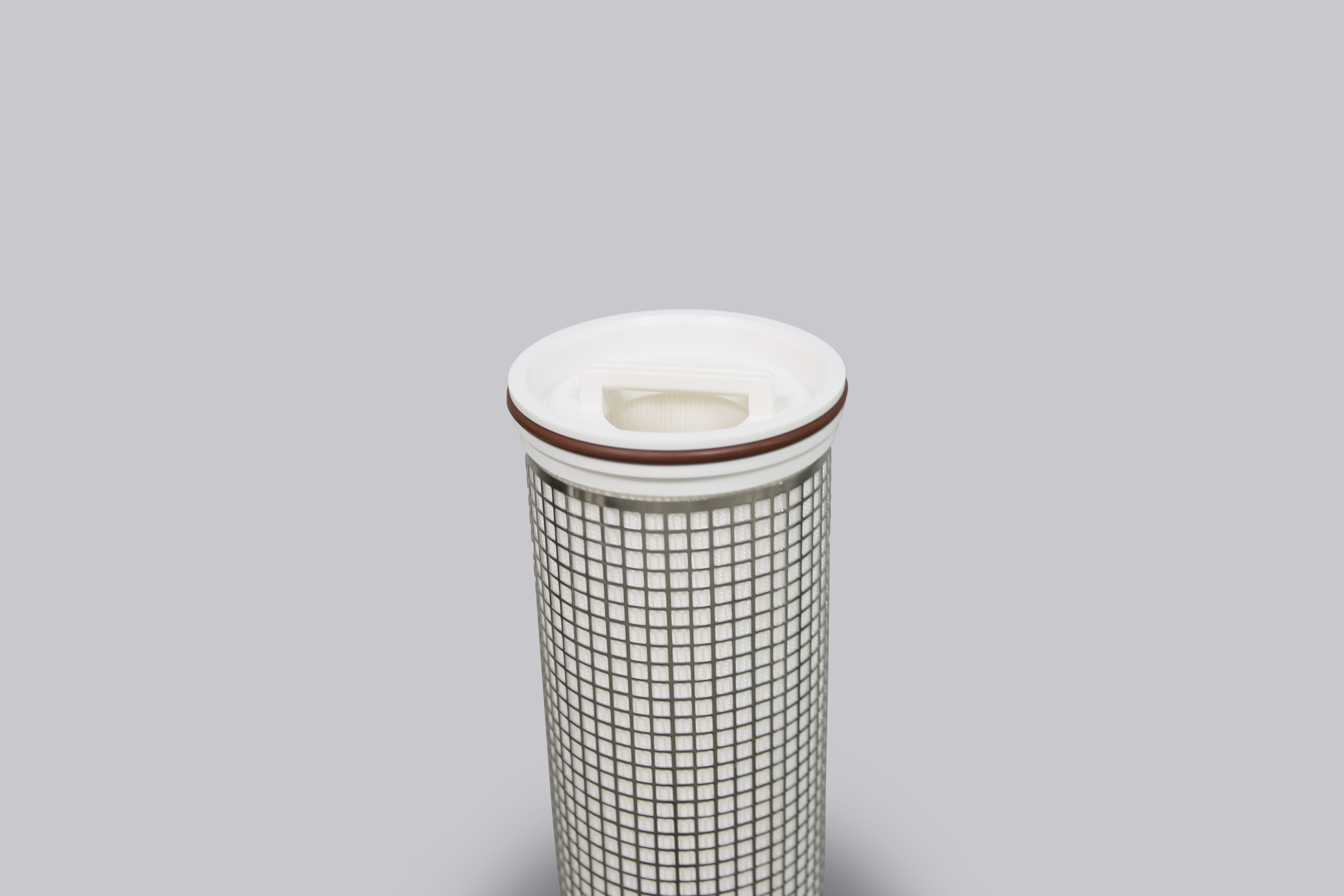

LFPH High Temperature Folding Filter Cartridge

Name: LFPH High Temperature Folding Filter Cartridge
Brand: Henan Senjia environmental Sci-Tech Co., Ltd.

The LFPH high-temperature and high flow folding filter element uses melt blown ultra-fine fiber modified polyester (PET) as the filter material. The maximum filtration area of a single filter element with a diameter of 6 inches exceeds 6m ², and the flow rate can reach 60m ³/h. The stainless steel outer frame is single opening, and the liquid flow direction from inside to outside is specially designed to ensure that all pollutant particles are intercepted inside the filter element. It is suitable for turbidity removal and filtration of high-temperature condensate water such as power plant heat network drainage and chemical condensate.

Get The Latest Quote

Description

Product Advantage

Composed of 5 or more layers of nanofiber membranes, the removal rate can reach 99.98%
High density folding achieves a perfect combination of large filtration area, high flow rate, long lifespan, and high pollutant holding capacity
Optimized integrated stainless steel outer frame, with greater strength and stronger pressure resistance
The maximum operating temperature can reach 145 ℃
Multiple filtration accuracies ranging from 0.5 μ m to 100 μ m can meet the requirements of different filtration levels. There are three length specifications to choose from: 20 ", 40", and 60 "
Filter element replacement is convenient and fast, saving a lot of manpower and time

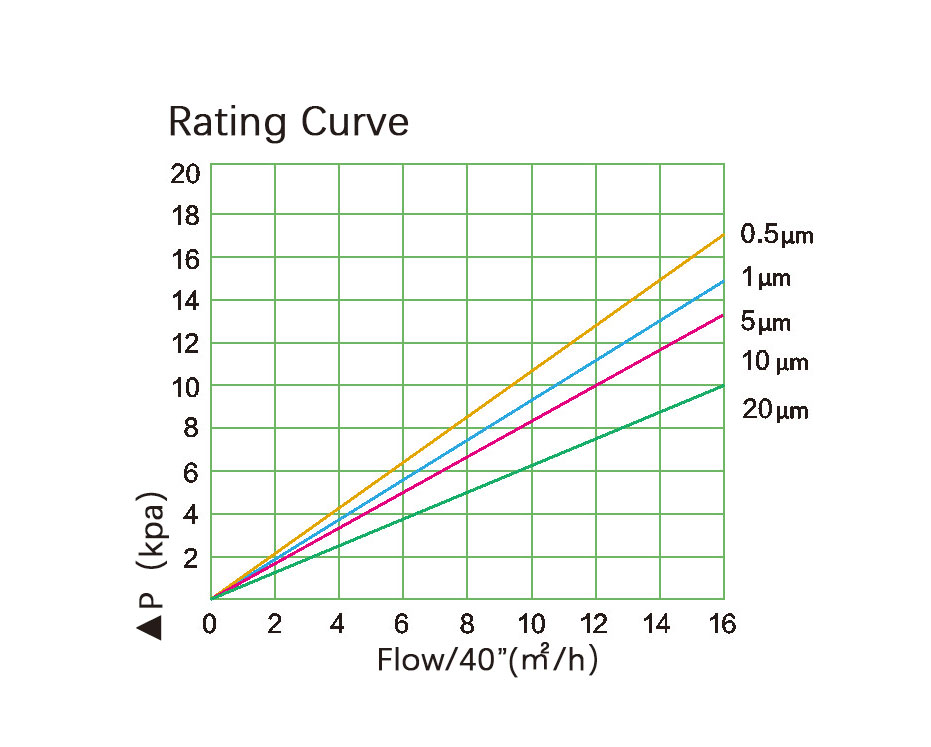

Design Parameters

Specification (diameter * length)	Design flow rate (m ³/h)	Maximum flow rate (m ³/h)	Filter area (㎡)
6”*20”	15	40	3.3
6”*40”	30	80	6.5
6”*60”	45	120	8.5

Material Structure

Model	PET
Filter material	Melt blown ultrafine fiber modified polyester (PET)
Support/diversion layer	Modified polyester (PET)
End cap	Modified polyester (PET)
Outer protective cover	Stainless steel/modified polyester (PET)

Ordering Information

LFPH	40	PET	0050	E	B
LFPH	length	Material Science	Accuracy	Seal ring	Appearance
	20=20”	PET	0010=1μm	E=Ethylene propylene diene monomer	S=Stainless steel skeleton
	40=40”		0030=3μm	S=Silicone rubber	B=PET winding tape
	60=60”		0050=5μm	F=Fluororubber
			0100=10μm
			0150=15μm
			0250=25μm
			0400=40μm
			0700=70μm

Industry Application
Drainage of power plant heating network
Chemical condensate
Other locations for filtering high-temperature condensed water
