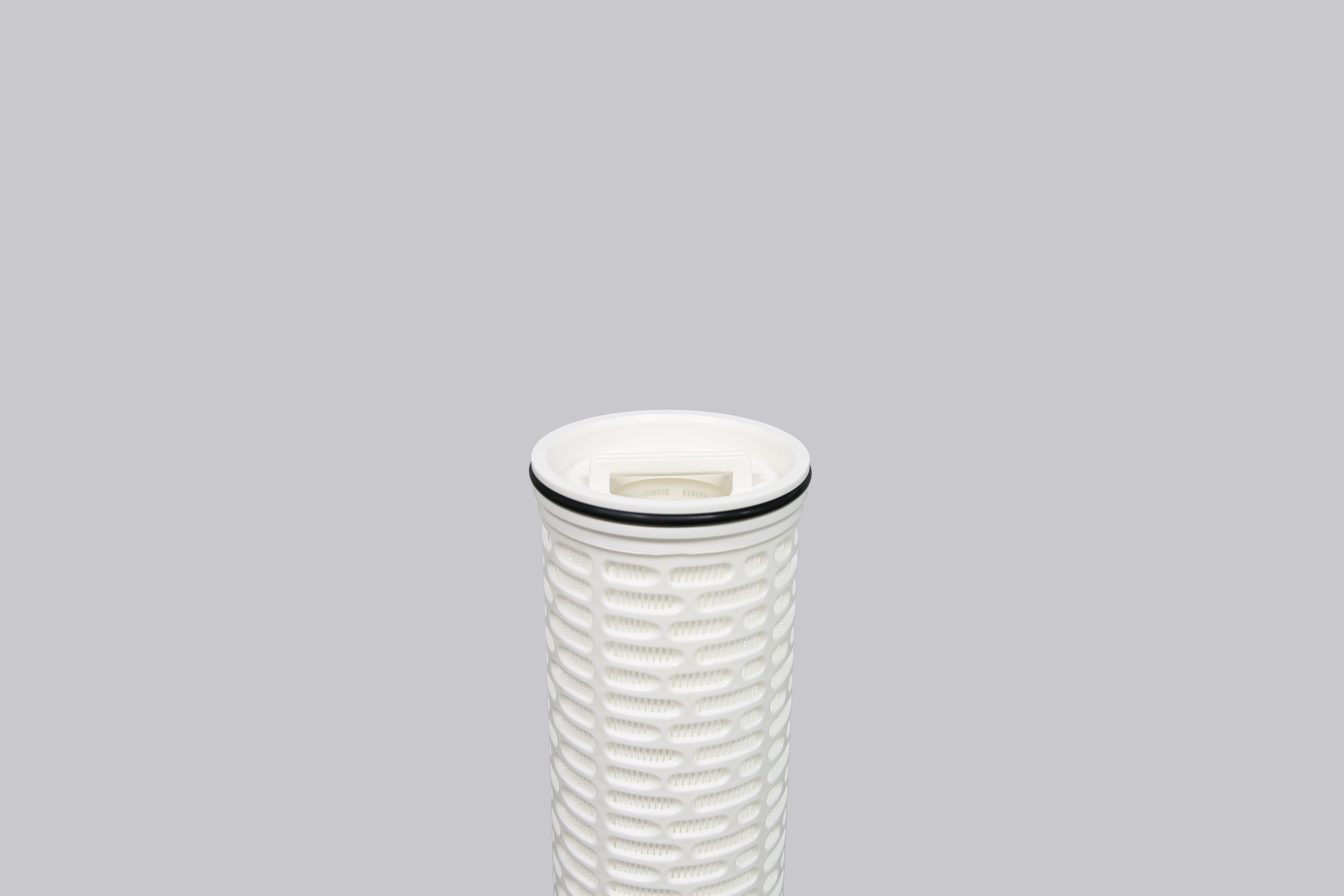

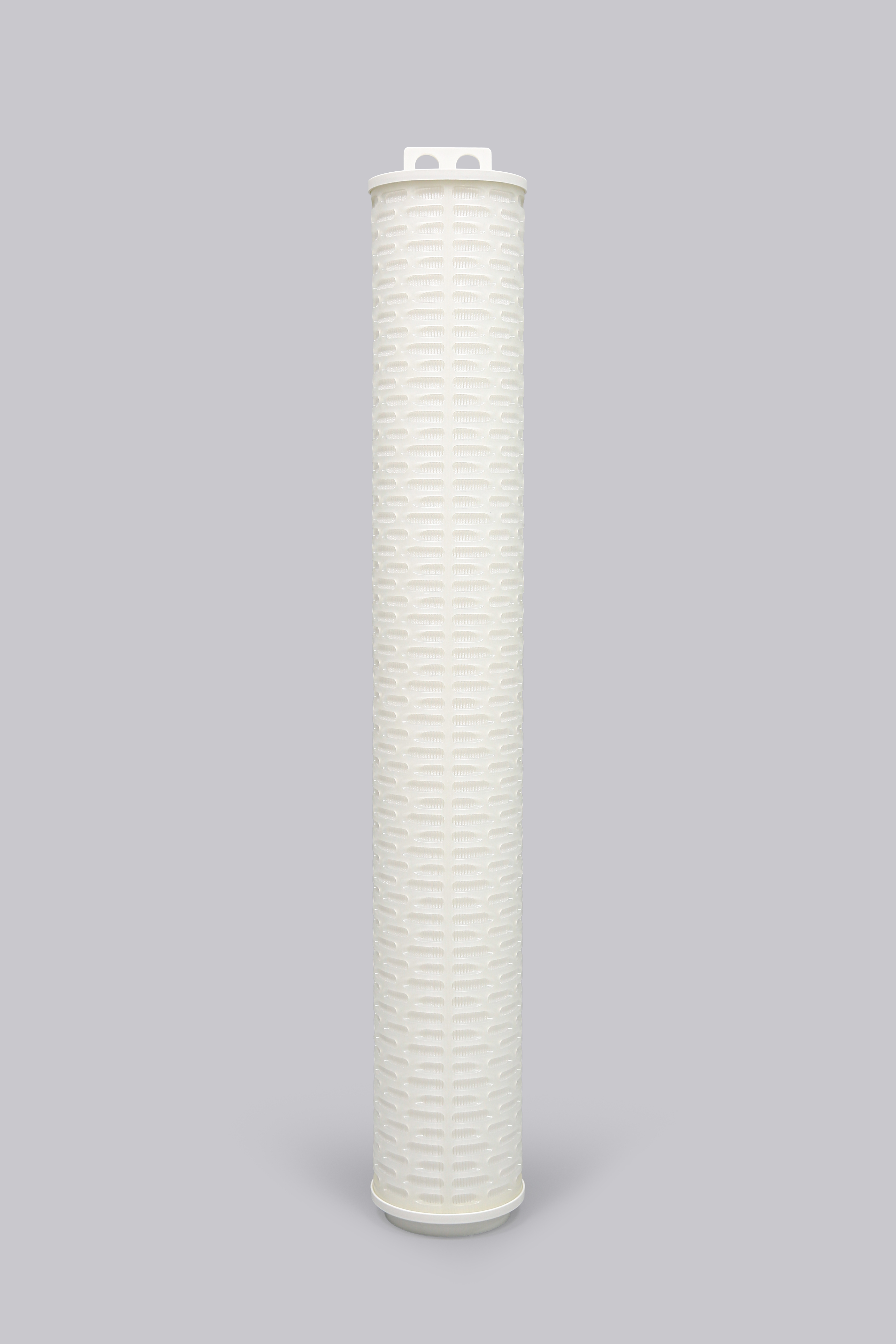

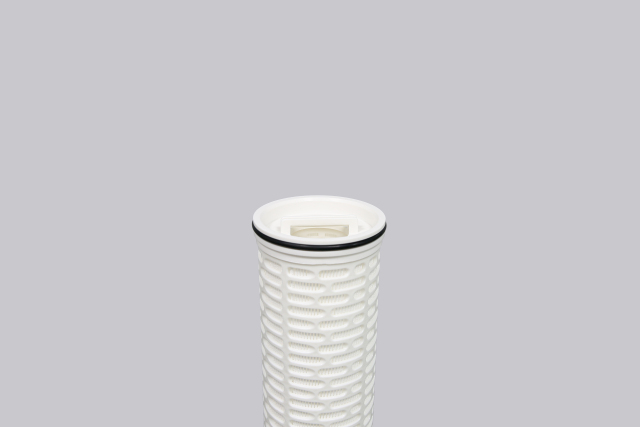

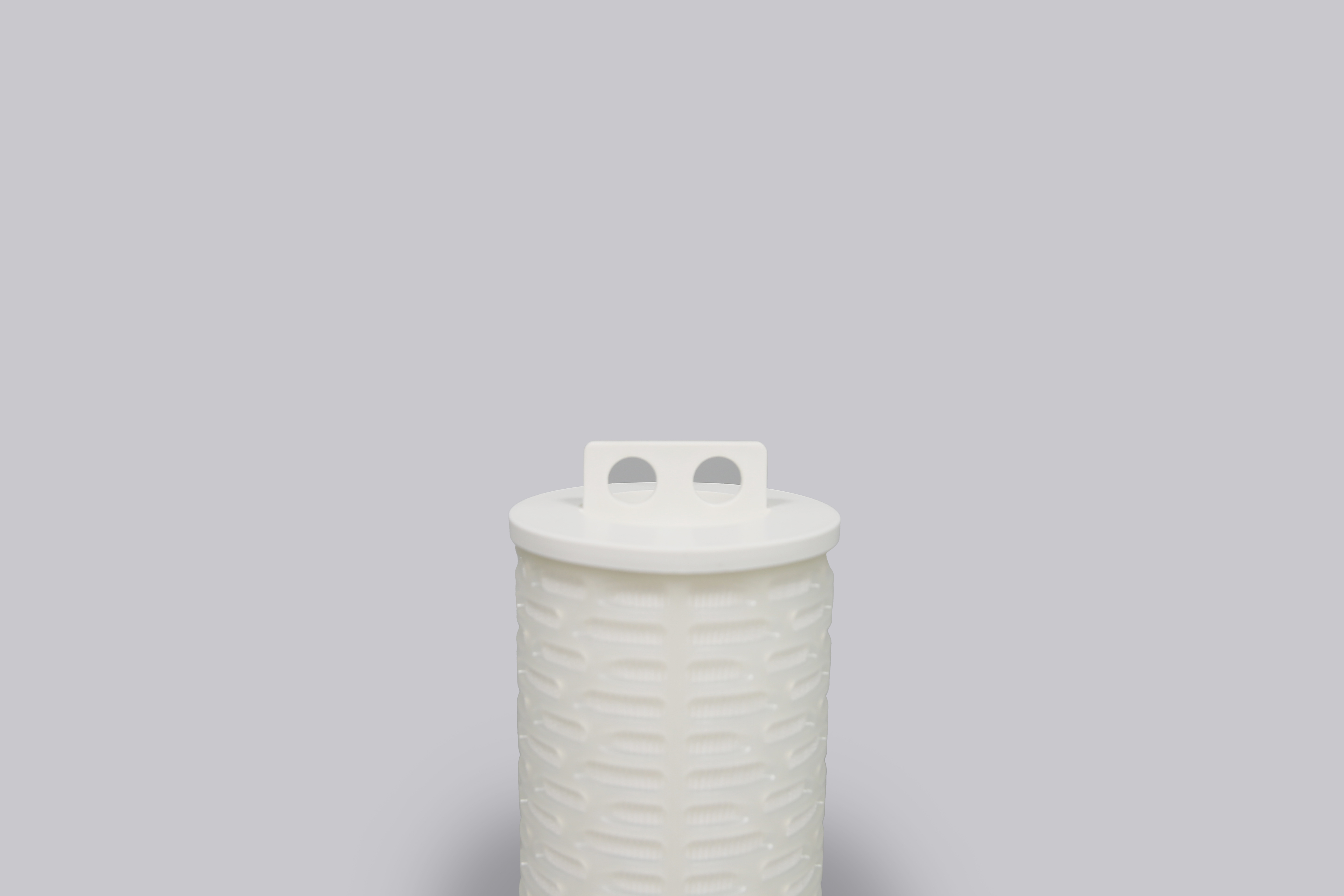

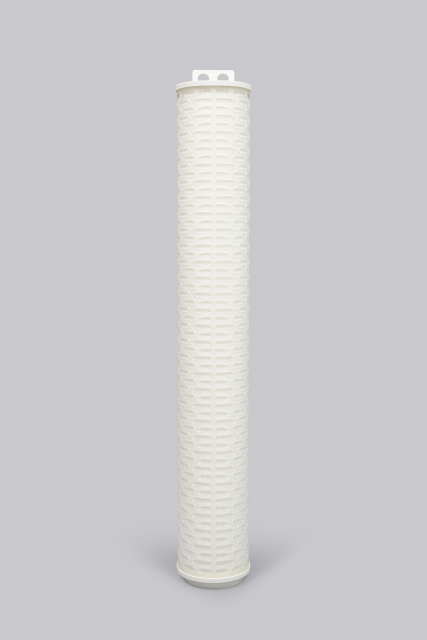

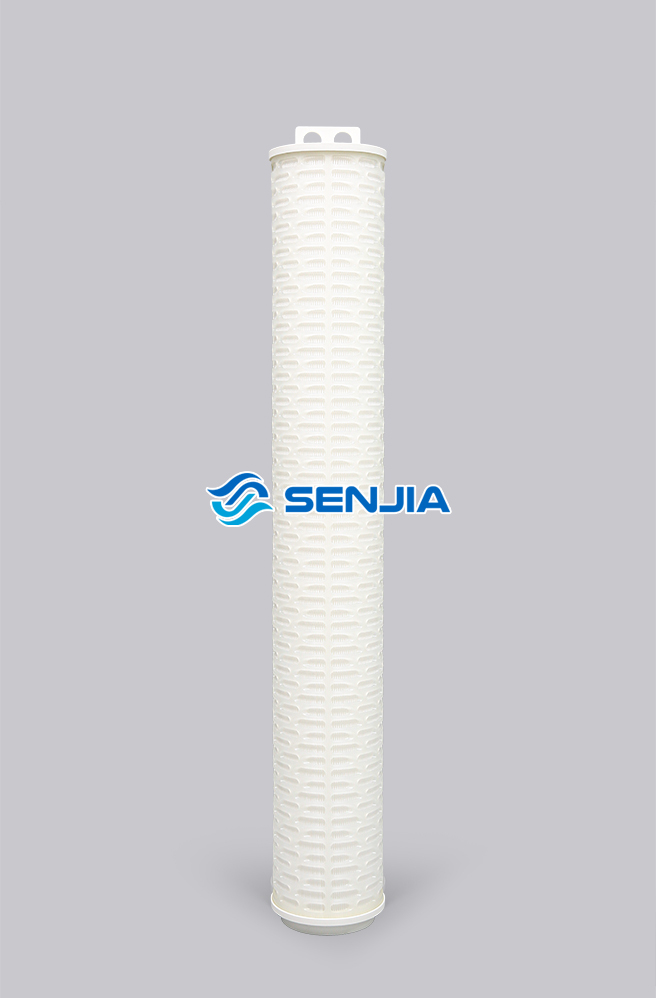

LFPK Series High Flow Filter Cartridge

Name: LFPK Series High Flow Filter Cartridge
Brand: Henan Senjia environmental Sci-Tech Co., Ltd.

The LFPK series high flow folding filter cartridge uses deep fine polypropylene fiber membrane as the filter material, with a diameter of 6 "/152mm. The maximum filtration area of a single filter cartridge exceeds 8m², and the flow rate can reach 60m³/h. It has a PP outer skeleton, single opening type, and specially designed liquid flow direction from inside to outside to ensure that all pollutant particles are intercepted inside the filter cartridge, which can be widely used in different fields. Reduced the requirements for the size and number of filter cartridges during use, greatly saving equipment and labor costs, and making operation more convenient.

Get The Latest Quote

Description

Product Advantage

Composed of 5 or more layers of nanofiber membranes, it can achieve ultra-high filtration efficiency of over 99% while providing a larger space for pollutant absorption
High density folding achieves a perfect combination of large filtration area, high flow rate, long lifespan, and high pollutant holding capacity
Optimize the integrated PP exoskeleton for greater strength and stronger pressure resistance
Unique sealing ring provides better sealing performance
Fiberglass reinforced end caps enhance the overall strength of the filter element
From 0.5 μ m to 100 μ m, it can meet the requirements of different filtration levels for various filtration accuracies. There are three length specifications to choose from: 20 ", 40", and 60 "
Filter element replacement is convenient and fast, saving a lot of manpower and time

Design Parameters

Specification (diameter * length)	Design flow rate (m ³/h)	Maximum flow rate (m ³/h)	Filtration area (㎡)
6”*20”	15	40	3.3
6”*40”	30	80	6.5
6”*60”	45	110	8.5

Material Structure

Model	pp	GF
Filter material	Deep folding polypropylene	Resin synthetic fiberglass/polyester
Support/diversion layer	Polypropylene	Polyester
End cap	Glass fiber reinforced polypropylene	Glass fiber reinforced polypropylene
Outer protective cover	Polypropylene	Polyester

Ordering Information

LFPK		40	PP	0050	N	S
LFPK	Type	Length	Material Science	Accuracy	Seal Ring	Appearance
	P	20=20”	PP	0010=1μm	E=Ethylene propylene diene monomer	S=skeleton
	K	40=40”	GF	0030=3μm	S=Silicone rubber	B=wrapping tape
	M	60=60”		0050=5μm	F=Fluororubber
				0100=10μm	N=Nitrile rubber
				0150=15μm
				0250=25μm
				0400=40μm
				0700=70μm

Industry Application
Seawater desalination project
Concentrated water treatment
Advanced treatment of papermaking wastewater
Advanced treatment of printing and dyeing wastewater
Reclaimed water plant
Other places with high filtration flow

Exceptional Filtration Efficiency
The high flow water filter cartridge provides superior contaminant removal, ensuring clean and safe output for critical industrial applications. Its advanced design makes it a standout product for cartridge filter suppliers worldwide.

Versatile Industrial Applications
From water treatment to chemical processing, this high flow filter cartridge is engineered to meet diverse filtration needs. It is ideal for industries requiring robust and reliable cartridge filter water solutions.

Durable and Sustainable Design
Manufactured using high-grade materials, the water filter cartridge is built for durability and sustainability, aligning with the growing demand for eco-friendly industrial products.

Easy Installation and Maintenance
This cartridge is user-friendly, reducing downtime and maintenance costs. It seamlessly integrates with existing systems, offering a hassle-free solution for businesses in need of cartridge filters.
